RadioMaster ER6G 6-Channel ELRS (LBT) PWM Receiver
ER6G 6-Channel ELRS (LBT) PWM Receiver from RadioMaster - HP0157-RX-ER6-G-LBT
The RadioMaster ER series of PWM receivers utilize the innovative ExpressLRS (ELRS) protocol, delivering exceptional performance, reliability, and versatility. With quick response times and an incredibly long range, these receivers bring you the best that ELRS technology has to offer.
The ER6G receiver has been specifically designed for glider pilots seeking a compact and lightweight solution. Capable of driving up to 6 servos, this receiver comes with integrated telemetry for both receiver voltage and flight battery, automatically selecting the appropriate voltage input. It’s equipped with dual antennas and can transmit telemetry at a power of up to 50mW, ensuring stable performance with a 1S LiPo receiver battery.
While the ER6G offers the same features as the ER6GV, it does not include a built-in high-precision air pressure sensor (Vario). This makes it ideal for competitions where Vario use is restricted or for users who prefer a receiver without this feature.
ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW.
Features:
- Built on the revolutionary ExpressLRS protocol
- High performance and reliability with flexible configuration, fast response times, and ultra-long range
- Supports 6 PWM channels
- Ideal for use in gliders where space is limited
- Optimized PCB design for improved performance
- Automatic telemetry for external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High-quality 2.54mm connector

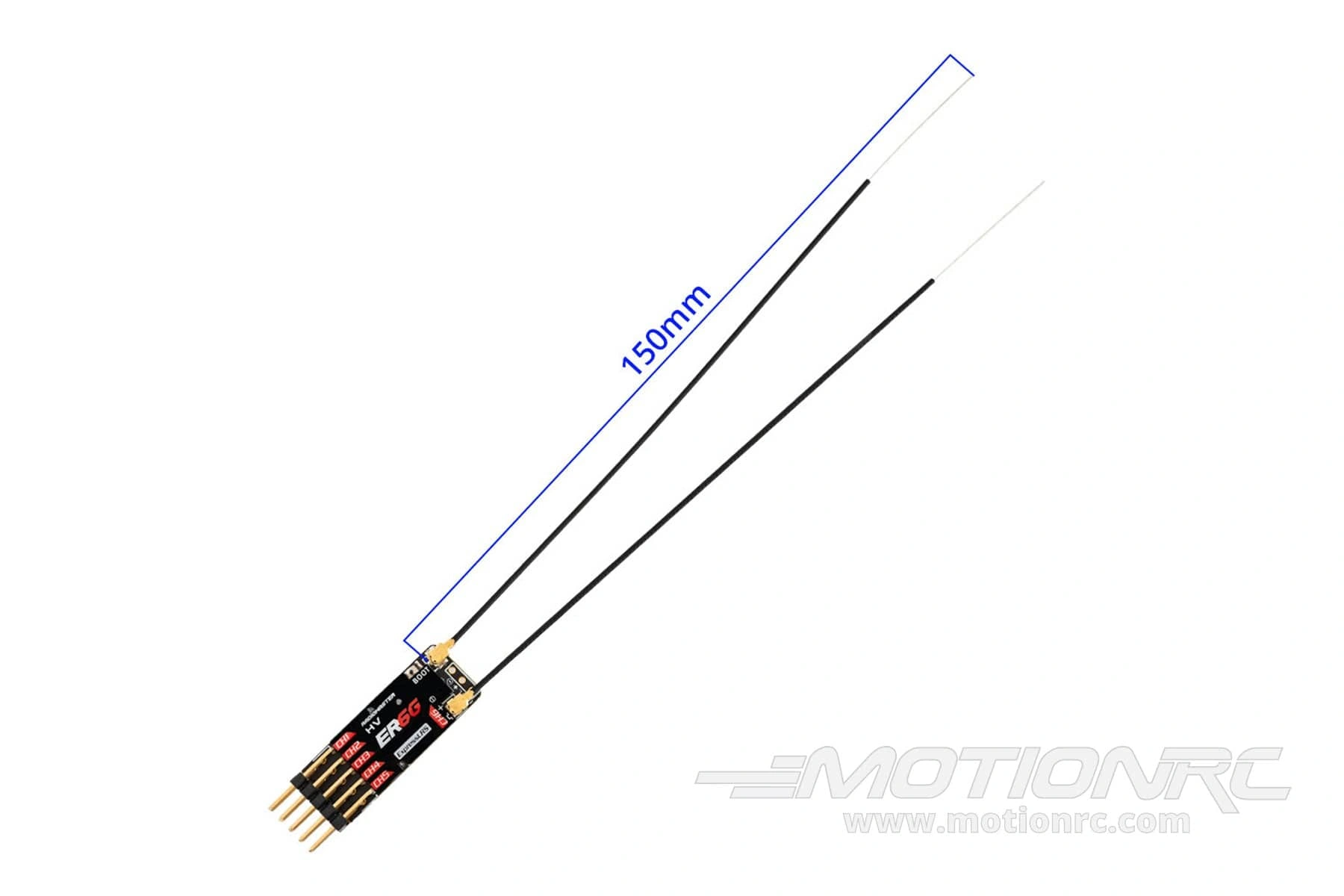

- Comes with a standard 15cm high-sensitivity dual antenna
- Compatible with all 2.4GHz ExpressLRS modules and transmitters equipped with built-in 2.4GHz ExpressLRS

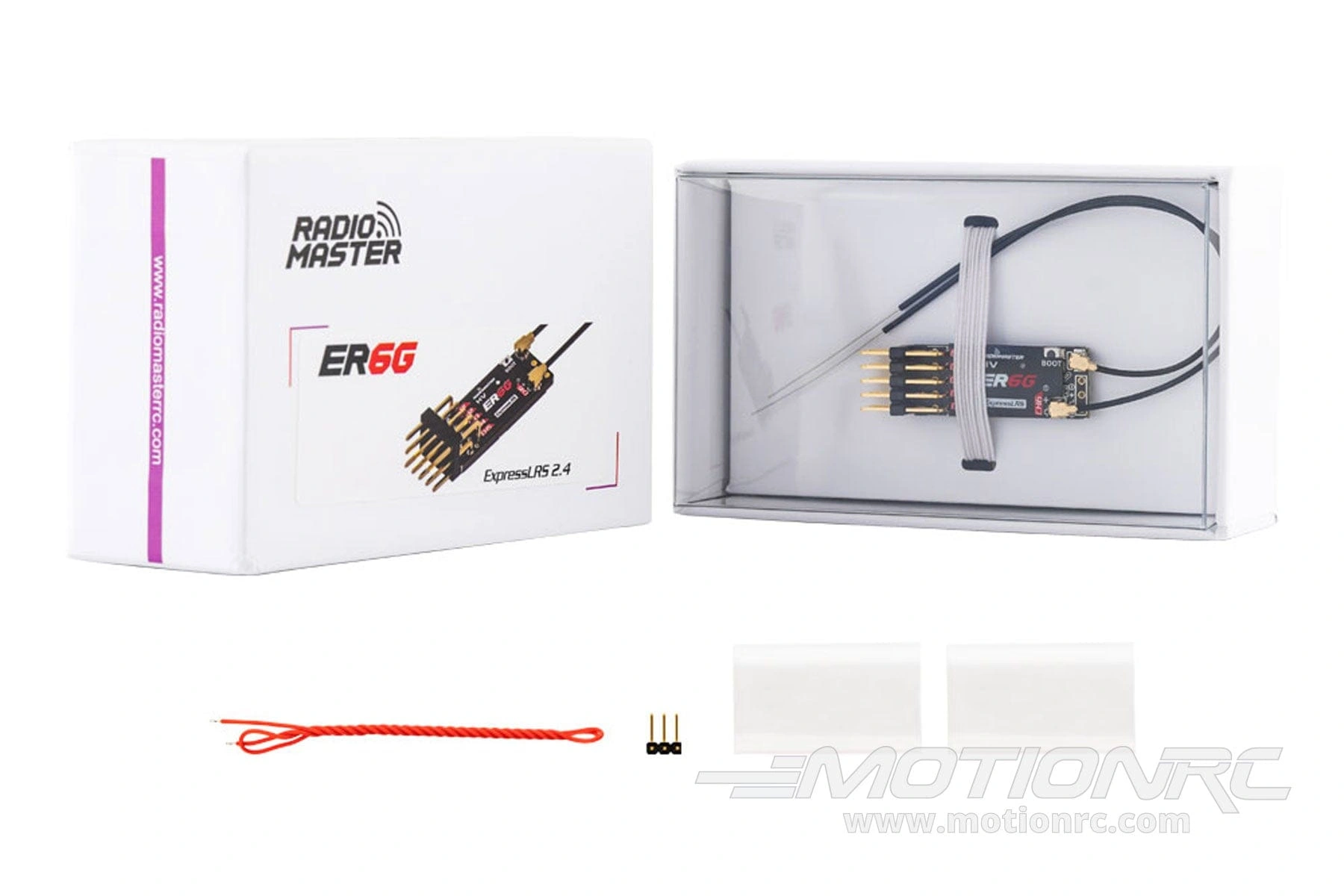

Includes:
- RadioMaster ER6G 6-Channel ELRS (LBT) PWM Receiver
- Voltage telemetry wire (Type-A)
- 2x heat shrink tube
- User card
Requires:
- ELRS compatible transmitter
